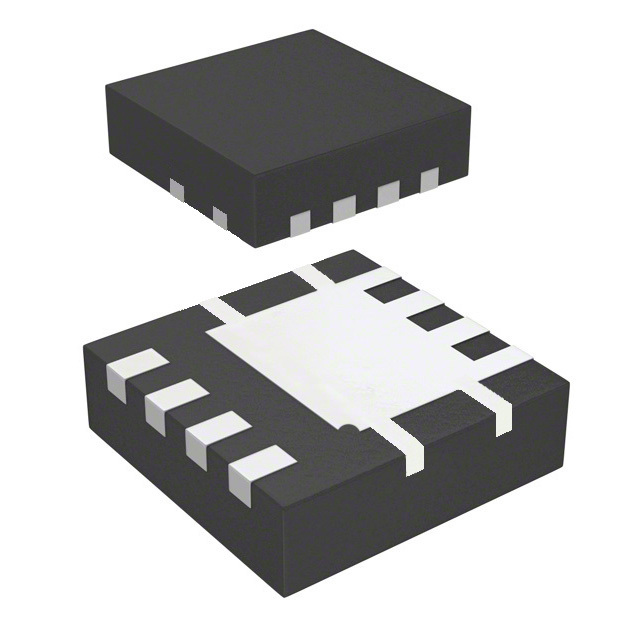

DMN2005UFG-13

SKU: 124642

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 20V 18A 8-Pin PowerDI EP T/R

1650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	1.2
Maximum Continuous Drain Current (A)	18
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	10
Maximum Drain Source Resistance (mOhm)	4.6@4.5V
Typical Gate Charge @ Vgs (nC)	164@10V
Typical Gate Charge @ 10V (nC)	164
Typical Input Capacitance @ Vds (pF)	6495@10V
Maximum Power Dissipation (mW)	2270
Typical Fall Time (ns)	38
Typical Rise Time (ns)	25.7
Typical Turn-Off Delay Time (ns)	114
Typical Turn-On Delay Time (ns)	12.4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	PowerDI EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.8
Package Length	3.3
Package Width	3.3
PCB changed	8
