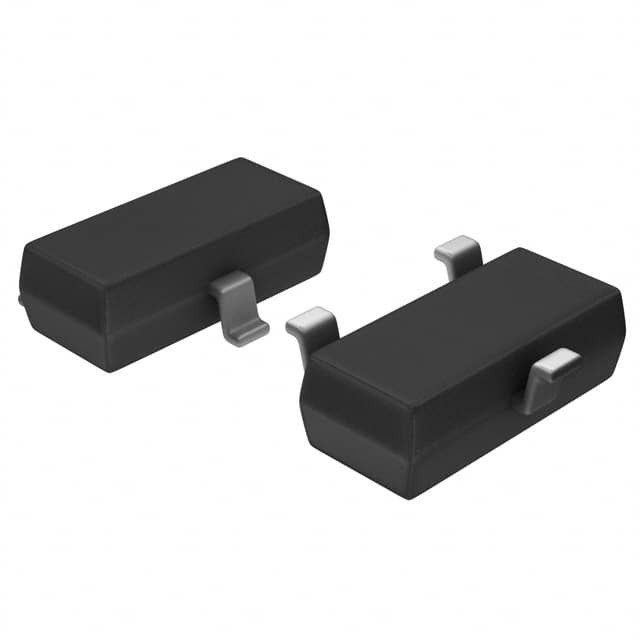

    DMN2005K-7

    SKU: 39852
    Manufacturer: Diodes Incorporated
    Trans MOSFET N-CH 20V 0.3A 3-Pin SOT-23 T/R
    185750 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Product Category Small Signal
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 20
    Maximum Gate Source Voltage (V) ±10
    Maximum Gate Threshold Voltage (V) 0.9
    Operating Junction Temperature (°C) -65 to 150
    Maximum Continuous Drain Current (A) 0.3
    Maximum Gate Source Leakage Current (nA) 5000
    Maximum IDSS (uA) 10
    Maximum Drain Source Resistance (mOhm) 1700@2.7V
    Minimum Gate Threshold Voltage (V) 0.53
    Typical Output Capacitance (pF) 6
    Maximum Power Dissipation (mW) 350
    Operating Temperature-Min -65
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Maximum Positive Gate Source Voltage (V) 10
    Maximum Continuous Drain Current on PCB @ TC=25°C (A) 0.3
    Maximum Power Dissipation on PCB @ TC=25°C (W) 0.35
    Maximum Pulsed Drain Current @ TC=25°C (A) 0.6
    Typical Diode Forward Voltage (V) 0.7
    Maximum Diode Forward Voltage (V) 1.4
    Pin Count 3
    Standard Package Method SOT
    Original Package SOT-23
    Terminal Form Surface Mount
    Package Height 0.98
    Package Length 2.9
    Package Width 1.3
    PCB changed 3
