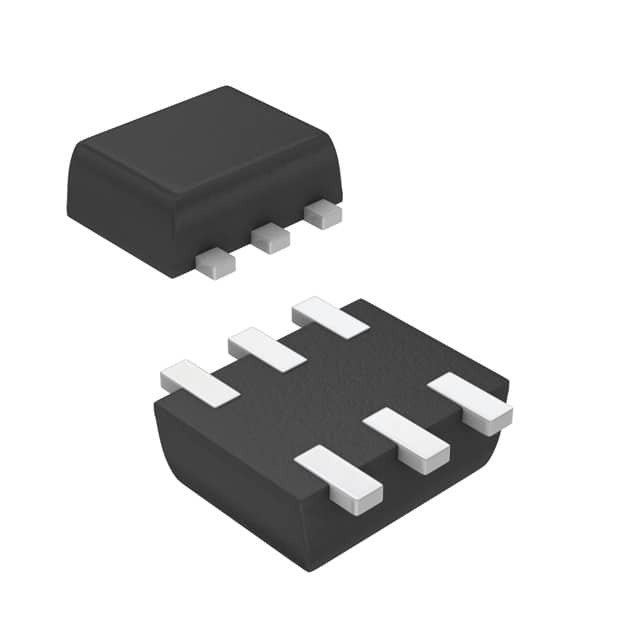

DMN2004VK-7

SKU: 138928

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 20V 0.54A 6-Pin SOT-563 T/R

60800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Small Signal
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	0.54
Maximum Drain Source Resistance (mOhm)	550@4.5V
Typical Input Capacitance @ Vds (pF)	150(Max)@16V
Maximum Power Dissipation (mW)	250
Typical Fall Time (ns)	36.1
Typical Rise Time (ns)	13.3
Typical Turn-Off Delay Time (ns)	53.5
Typical Turn-On Delay Time (ns)	8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-563
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.6
Package Length	1.6
Package Width	1.2
PCB changed	6
