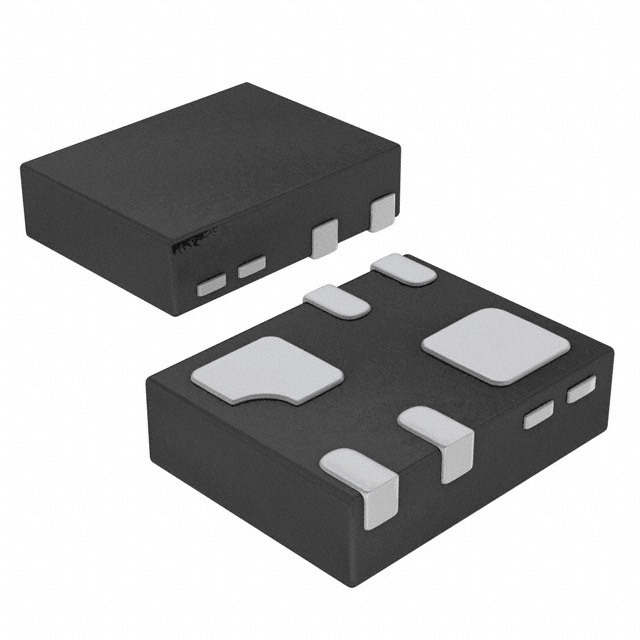

DMN1150UFL3-7

SKU: 115134

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 12V 2A 6-Pin X2-DFN T/R

2800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	12
Maximum Gate Source Voltage (V)	±6
Maximum Continuous Drain Current (A)	2
Maximum Drain Source Resistance (mOhm)	150@4.5V
Typical Gate Charge @ Vgs (nC)	1.4@4.5V
Typical Input Capacitance @ Vds (pF)	115@6V
Maximum Power Dissipation (mW)	900
Typical Fall Time (ns)	19
Typical Rise Time (ns)	7.4
Typical Turn-Off Delay Time (ns)	44
Typical Turn-On Delay Time (ns)	4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	X2-DFN
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.28
Package Length	1.3
Package Width	1
PCB changed	6
