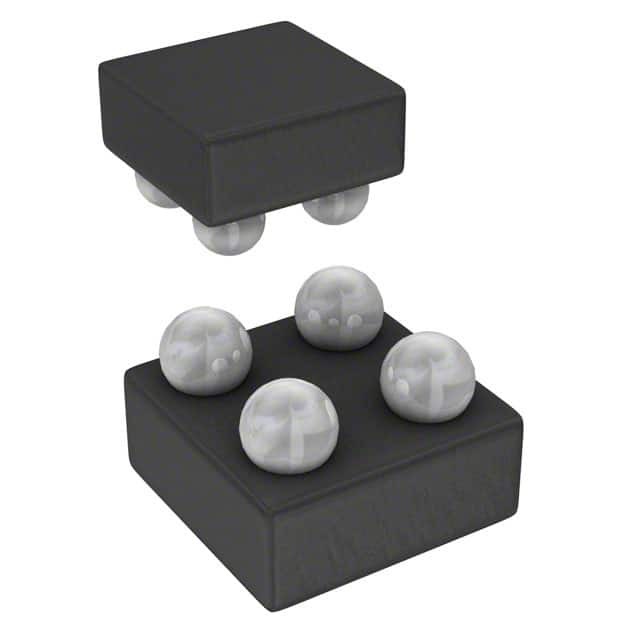

DMN1033UCB4-7

SKU: 131811

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 12V 5.5A 4-Pin UWLP T/R

3700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.29.00.95
Automotive	No
PPAP	No
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	12
Maximum Gate Source Voltage (V)	±6
Maximum Gate Threshold Voltage (V)	0.7
Maximum Continuous Drain Current (A)	5.5
Maximum Gate Source Leakage Current (nA)	10000
Typical Gate Charge @ Vgs (nC)	37@4.5V
Maximum Power Dissipation (mW)	1450
Typical Fall Time (ns)	52
Typical Rise Time (ns)	20
Typical Turn-Off Delay Time (ns)	83
Typical Turn-On Delay Time (ns)	10
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	UWLP
Pin Count	4
Terminal Form	Surface Mount
Package Height	0.36
Package Length	1.79
Package Width	1.79
