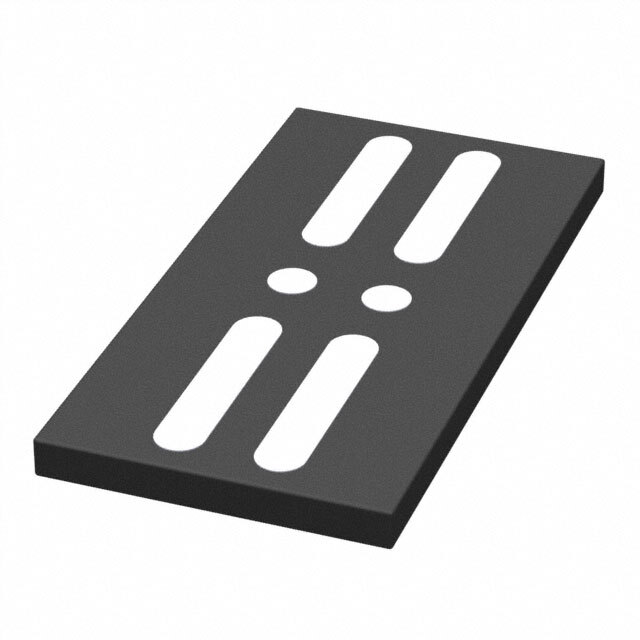

DMN1003UCA6-7

SKU: 39851

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 12V 23.6A 6-Pin X3-DSN T/R

1440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual Common Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	12
Maximum Gate Source Voltage (V)	±8
Maximum Continuous Drain Current (A)	23.6
Maximum Drain Source Resistance (mOhm)	3.2@4.5V
Typical Gate Charge @ Vgs (nC)	56.5@4.5V
Typical Input Capacitance @ Vds (pF)	3315@6V
Maximum Power Dissipation (mW)	2670
Typical Fall Time (ns)	6208
Typical Rise Time (ns)	1694
Typical Turn-Off Delay Time (ns)	4749
Typical Turn-On Delay Time (ns)	603
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	X3-DSN
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.21
Package Length	3.54
Package Width	1.77
