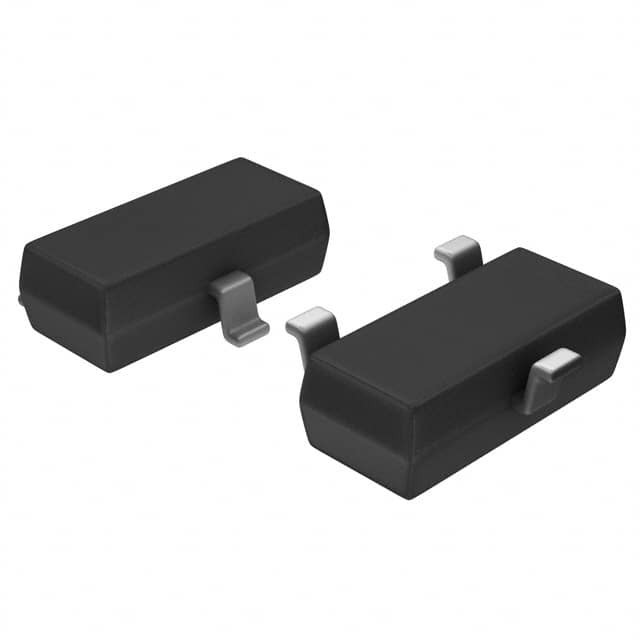

DMG2305UX-7

SKU: 153070

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 20V 4.2A 3-Pin SOT-23 T/R

101650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±8
Maximum Gate Threshold Voltage (V)	0.9
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	4.2
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	52@4.5V
Typical Gate Charge @ Vgs (nC)	10.2@4.5V
Typical Gate to Drain Charge (nC)	2.2
Typical Gate to Source Charge (nC)	1.3
Typical Input Capacitance @ Vds (pF)	808@15V
Typical Reverse Transfer Capacitance @ Vds (pF)	77@15V
Minimum Gate Threshold Voltage (V)	0.5
Typical Output Capacitance (pF)	85
Maximum Power Dissipation (mW)	1400
Typical Fall Time (ns)	34.7
Typical Rise Time (ns)	13.7
Typical Turn-Off Delay Time (ns)	79.3
Typical Turn-On Delay Time (ns)	10.8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	8
Maximum Continuous Drain Current on PCB @ TC=25°C (A)	4.2
Maximum Power Dissipation on PCB @ TC=25°C (W)	1.4
Maximum Pulsed Drain Current @ TC=25°C (A)	15
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	90
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.98
Package Length	2.9
Package Width	1.3
PCB changed	3
