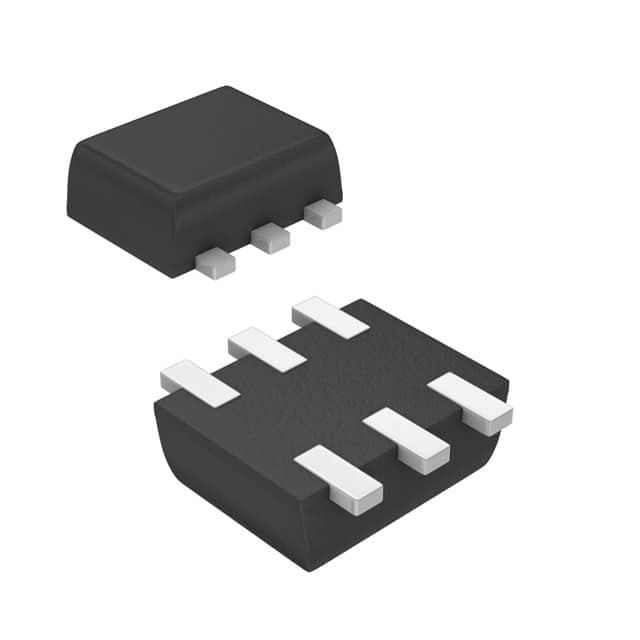

DMG1026UV-7

SKU: 39848

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 60V 0.41A 6-Pin SOT-563 T/R

53510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	1.8
Maximum Continuous Drain Current (A)	0.41
Maximum Gate Source Leakage Current (nA)	150
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	1800@10V
Typical Gate Charge @ Vgs (nC)	0.45@4.5V
Typical Input Capacitance @ Vds (pF)	32@25V
Maximum Power Dissipation (mW)	650
Typical Fall Time (ns)	16.3
Typical Rise Time (ns)	3.4
Typical Turn-Off Delay Time (ns)	26.4
Typical Turn-On Delay Time (ns)	3.4
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-563
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.6
Package Length	1.6
Package Width	1.2
PCB changed	6
