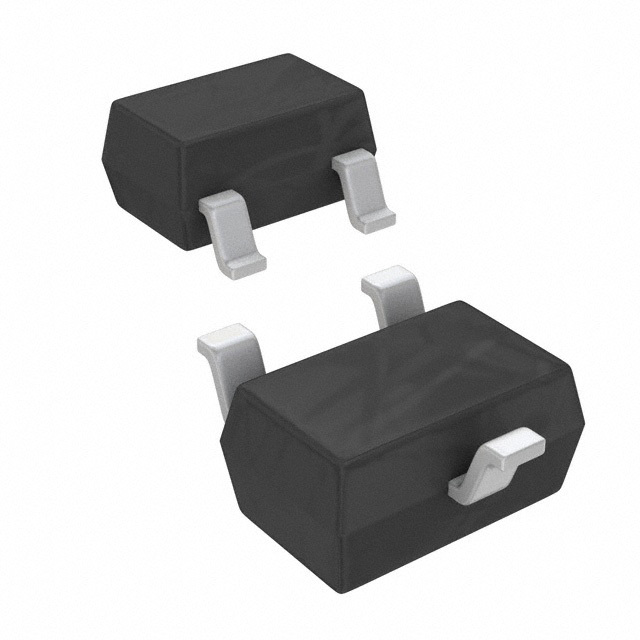

DMG1013UWQ-7

SKU: 117566

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 20V 0.82A Automotive 3-Pin SOT-323 T/R

2350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	Yes
PPAP	Yes
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±6
Maximum Gate Threshold Voltage (V)	1
Maximum Continuous Drain Current (A)	0.82
Maximum Gate Source Leakage Current (nA)	2000
Maximum IDSS (uA)	0.1
Maximum Drain Source Resistance (mOhm)	750@4.5V
Typical Gate Charge @ Vgs (nC)	622.4@4.5V
Typical Input Capacitance @ Vds (pF)	59.76@16V
Maximum Power Dissipation (mW)	310
Typical Fall Time (ns)	20.7
Typical Rise Time (ns)	8.1
Typical Turn-Off Delay Time (ns)	28.4
Typical Turn-On Delay Time (ns)	5.1
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOT-323
Pin Count	3
Standard Package Method	SOT-323
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.15
Package Width	1.3
PCB changed	3
