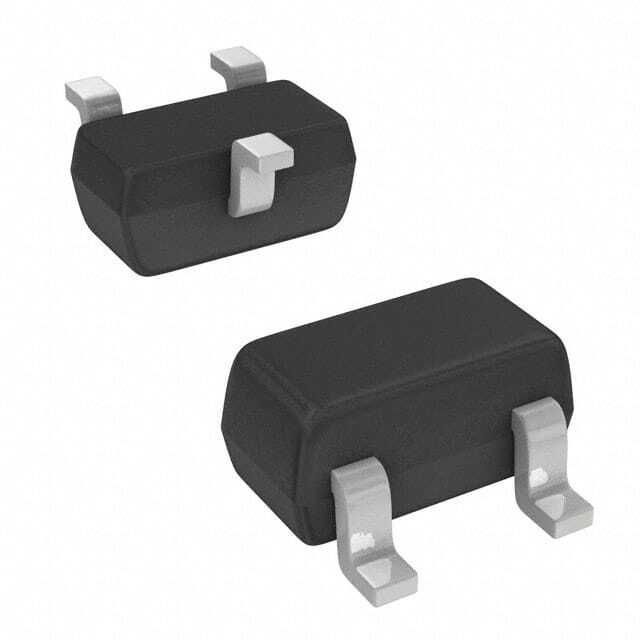

DMG1012T-7

SKU: 153069

Manufacturer: Diodes Incorporated

Trans MOSFET N-CH 20V 0.63A 3-Pin SOT-523 T/R

1159010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±6
Maximum Continuous Drain Current (A)	0.63
Maximum Drain Source Resistance (mOhm)	400@4.5V
Typical Gate Charge @ Vgs (nC)	736.6@4.5V
Typical Input Capacitance @ Vds (pF)	60.67@16V
Maximum Power Dissipation (mW)	280
Typical Fall Time (ns)	12.3
Typical Rise Time (ns)	7.4
Typical Turn-Off Delay Time (ns)	26.7
Typical Turn-On Delay Time (ns)	5.1
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOT-523
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.75
Package Length	1.6
Package Width	0.8
PCB changed	3
