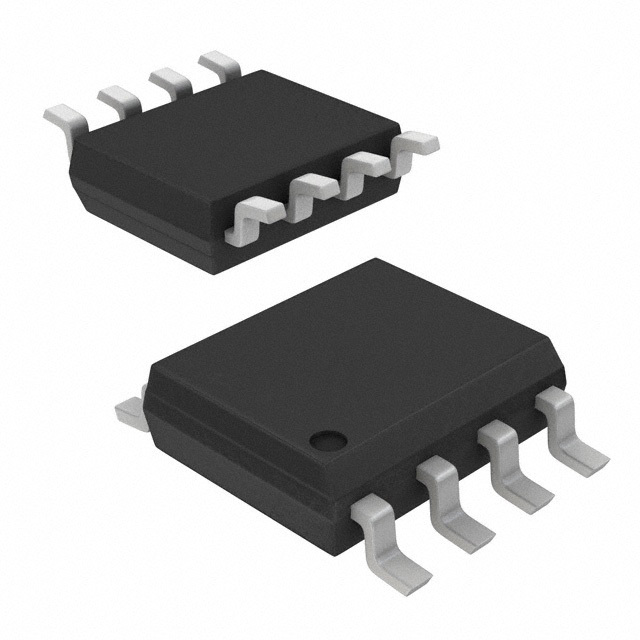

DMC4050SSDQ-13

SKU: 39846

Manufacturer: Diodes Incorporated

Trans MOSFET N/P-CH 40V 5.3A Automotive 8-Pin SO T/R

23750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Product Category	Power MOSFET
Configuration	Dual Dual Drain
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	40
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	1.8
Maximum Continuous Drain Current (A)	5.3
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	45@10V
Typical Gate Charge @ Vgs (nC)	37.56@10V@N Channel
Typical Gate Charge @ 10V (nC)	37.56@N Channel
Typical Input Capacitance @ Vds (pF)	1643.17@20V@P Channel
Maximum Power Dissipation (mW)	2140@N Channel
Typical Fall Time (ns)	5.27@N Channel
Typical Rise Time (ns)	15.14@N Channel
Typical Turn-Off Delay Time (ns)	24.29@N Channel
Typical Turn-On Delay Time (ns)	8.08@N Channel
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SO
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.45
Package Length	4.9
Package Width	3.9
PCB changed	8
