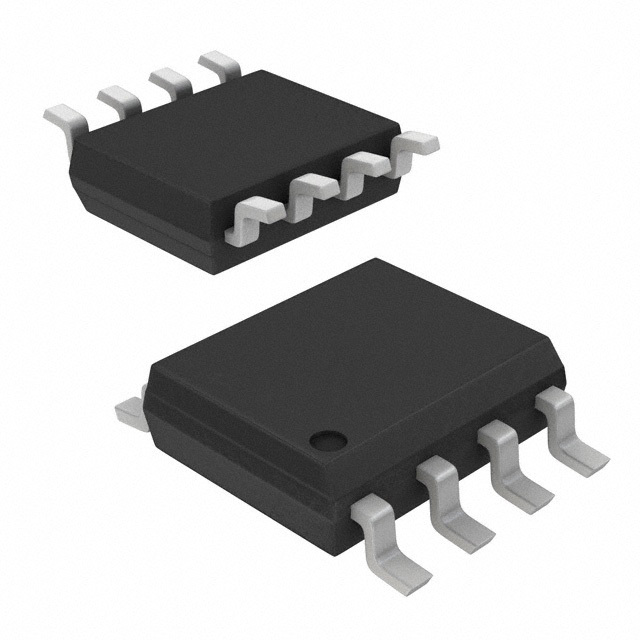

    DMC3026LSD-13

    SKU: 51640
    Manufacturer: Diodes Incorporated
    Trans MOSFET N/P-CH 30V 6.5A/6.2A 8-Pin SO T/R
    3080 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Dual Dual Drain
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 2
    Maximum Drain Source Voltage (V) 30
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 3
    Maximum Continuous Drain Current (A) 6.5@N Channel
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 25@10V@Q 1
    Typical Gate Charge @ Vgs (nC) 6@4.5V
    Typical Gate Charge @ 10V (nC) 13.2@Q 1
    Typical Input Capacitance @ Vds (pF) 641@15V@Q 1
    Maximum Power Dissipation (mW) 1600
    Typical Fall Time (ns) 5.3@Q 1
    Typical Rise Time (ns) 4.4@Q 1
    Typical Turn-Off Delay Time (ns) 22.3@Q 1
    Typical Turn-On Delay Time (ns) 3.3@Q 1
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Supplier Temperature Grade Automotive
    Packing Method Tape and Reel
    Original Package SO
    Pin Count 8
    Standard Package Method SOP
    Terminal Form Surface Mount
    Package Height 1.45
    Package Length 4.9
    Package Width 3.9
    PCB changed 8
