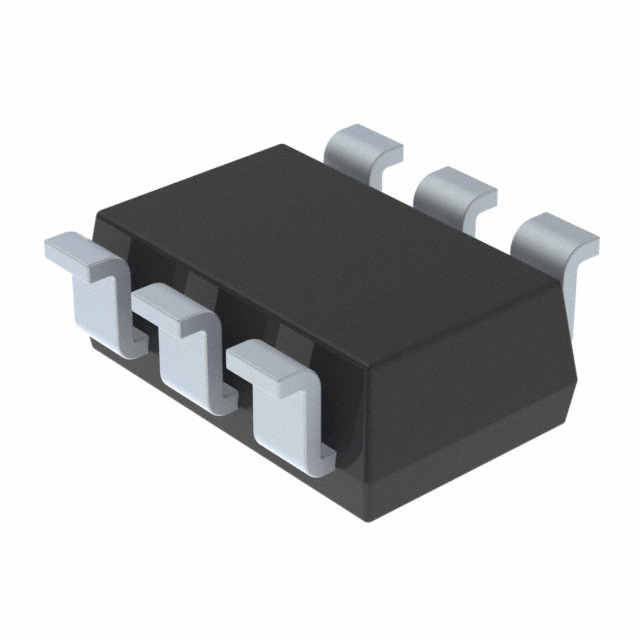

DMC2700UDM-7

SKU: 18624

Manufacturer: Diodes Incorporated

Trans MOSFET N/P-CH 20V 1.34A/1.14A 6-Pin SOT-26 T/R

18540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±6
Maximum Gate Threshold Voltage (V)	1
Maximum Continuous Drain Current (A)	1.34@N Channel
Maximum Gate Source Leakage Current (nA)	1000
Maximum IDSS (uA)	0.1
Maximum Drain Source Resistance (mOhm)	400@4.5V@N Channel
Typical Gate Charge @ Vgs (nC)	0.7366@4.5V@N Channel
Typical Input Capacitance @ Vds (pF)	60.67@16V@N Channel
Maximum Power Dissipation (mW)	1120
Typical Fall Time (ns)	12.3@N Channel
Typical Rise Time (ns)	8.1@P Channel
Typical Turn-Off Delay Time (ns)	28.4@P Channel
Typical Turn-On Delay Time (ns)	5.1
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-26
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3
Package Width	1.6
PCB changed	6
