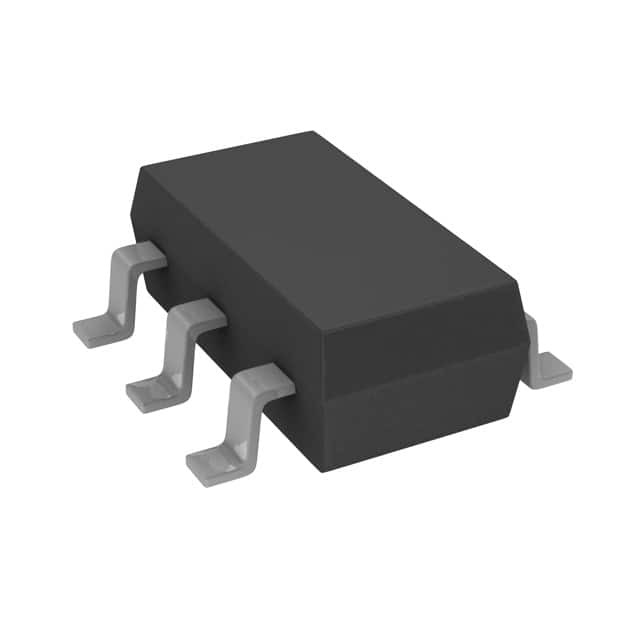

DMC2038LVT-7

SKU: 117564

Manufacturer: Diodes Incorporated

Trans MOSFET N/P-CH 20V 4.5A/3.1A 6-Pin TSOT-26 T/R

271280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Dual
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	2
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	1
Maximum Continuous Drain Current (A)	4.5@N Channel
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	74@4.5V@P Channel
Typical Gate Charge @ Vgs (nC)	12@10V
Typical Gate Charge @ 10V (nC)	12@N Channel
Typical Input Capacitance @ Vds (pF)	400@10V@N Channel
Maximum Power Dissipation (mW)	1100
Typical Fall Time (ns)	8@N Channel
Typical Rise Time (ns)	8@N Channel
Typical Turn-Off Delay Time (ns)	25@N Channel
Typical Turn-On Delay Time (ns)	5@N Channel
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Original Package	TSOT-26
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.6
PCB changed	6
