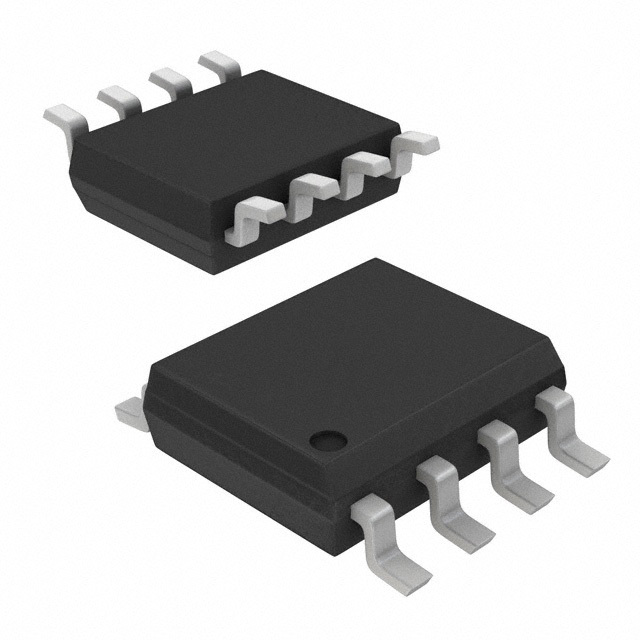

DGD2190S8-13

SKU: 153060

Manufacturer: Diodes Incorporated

Driver 600V 4.5A 2-OUT High and Low Side Half Brdg Non-Inv 8-Pin SO T/R

3430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Non-Inverting
Bridge Type	Half Bridge
Number of Drivers	2
High and Low Sides Dependency	Synchronous
Type	IGBT
Number of Outputs	2
Maximum Rise Time (ns)	50
Maximum Fall Time (ns)	45
Maximum Propagation Delay Time (ns)	200
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	20
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	2.5(Min)
Reference Voltage (V)	600(Max)
Peak Output Current (A)	4.5(Typ)
Maximum Power Dissipation (mW)	625
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Maximum Turn-On Delay Time (ns)	50
Maximum Turn-Off Delay Time (ns)	50
Latch-Up Proof	No
Packing Method	Tape and Reel
Original Package	SO
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.45
Package Length	4.9
Package Width	3.9
PCB changed	8
