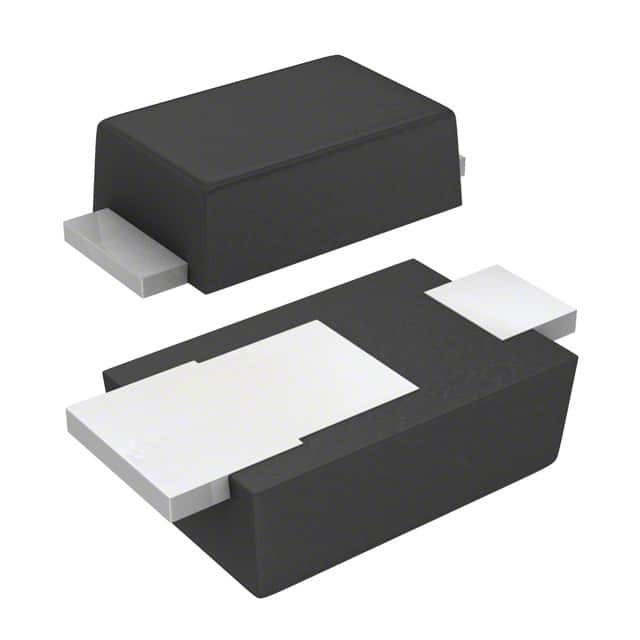

DFLZ15Q-7

SKU: 110456

Manufacturer: Diodes Incorporated

Zener Diode Single 15V 5% 10Ohm 1000mW Automotive 2-Pin PowerDI 123 T/R

3260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	15
Zener Voltage Tolerance	5%
Maximum Forward Voltage (V)	1.2
Maximum Power Dissipation (mW)	1000
Test Current (mA)	50
Maximum Reverse Leakage Current (uA)	1
Maximum Zener Impedance (Ohm)	10
Maximum Power Dissipation @ 25C (mW)	1000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Typical Voltage Temperature Coefficient	0.075%/°C
Packing Method	Tape and Reel
Original Package	PowerDI 123
Pin Count	2
Terminal Form	Surface Mount
Package Height	0.98
Package Length	2.8
Package Width	1.78
