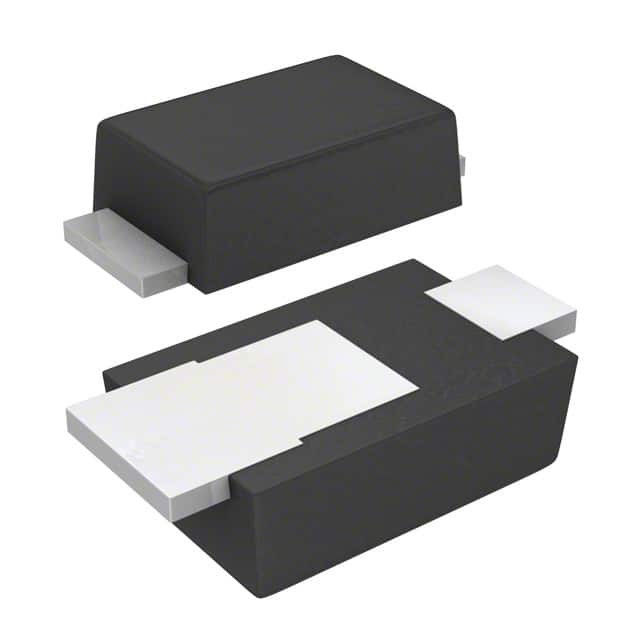

DFLS230LQ-7

SKU: 61084

Manufacturer: Diodes Incorporated

Rectifier Diode Schottky 30V 2A Automotive 2-Pin PowerDI 123 T/R

4350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Type	Schottky Diode
Maximum DC Reverse Voltage (V)	30
Configuration	Single
Peak Reverse Repetitive Voltage (V)	30
Maximum Continuous Forward Current (A)	2
Peak Non-Repetitive Surge Current (A)	33
Peak Forward Voltage (V)	0.42
Peak Reverse Current (uA)	1000
Maximum Power Dissipation (mW)	1670
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	PowerDI 123
Pin Count	2
Terminal Form	Surface Mount
Package Height	0.98
Package Length	2.8
Package Width	1.78
