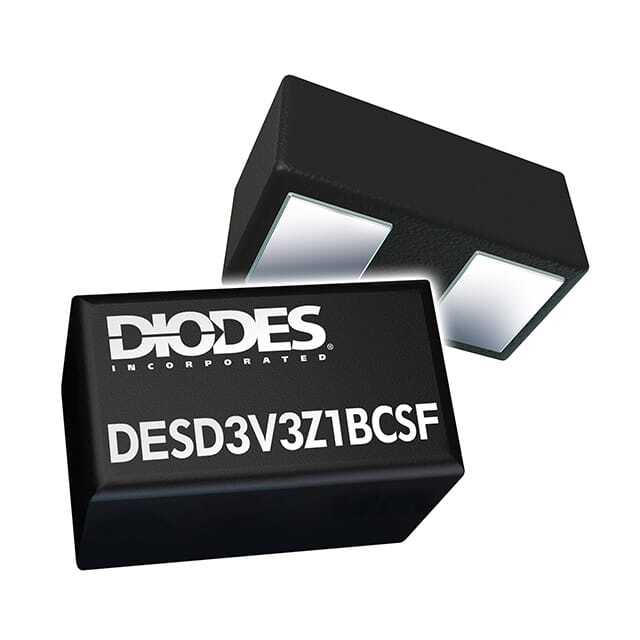

DESD3V3Z1BCSF-7

SKU: 46925

Manufacturer: Diodes Incorporated

ESD Suppressor Diode TVS Bi-Dir 3.3V 2-Pin X2-DSN T/R

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	3.3
Minimum Breakdown Voltage (V)	5
Maximum Breakdown Voltage (V)	9
Maximum Clamping Voltage (V)	11.5(Typ)
Maximum Peak Pulse Current (A)	3
Maximum Leakage Current (uA)	1
Test Current (mA)	1
Maximum Power Dissipation (mW)	250
Peak Pulse Power Dissipation (W)	25
Capacitance Value (pF)	0.25
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	X2-DSN
Pin Count	2
Terminal Form	Surface Mount
Package Height	0.29
Package Length	0.6
Package Width	0.3
