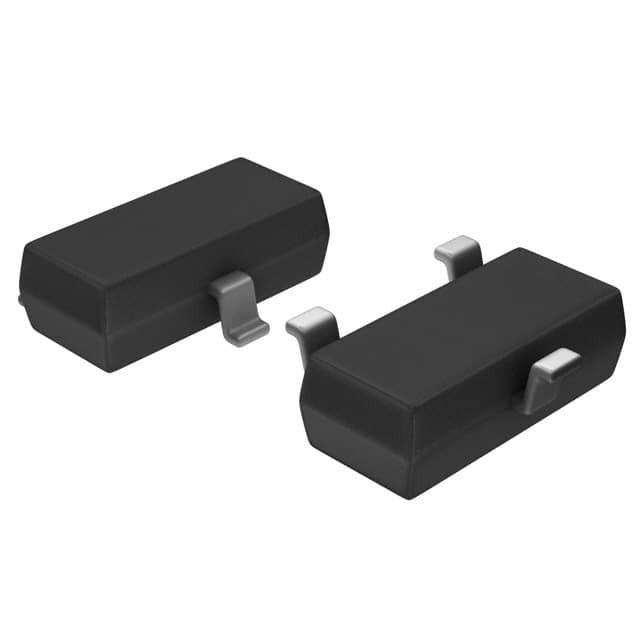

DESD34VS2SO-7

SKU: 110442

Manufacturer: Diodes Incorporated

ESD Suppressor Diode TVS Uni-Dir 34V Automotive 3-Pin SOT-23 T/R

3230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Dual Common Cathode
Direction Type	Uni-Directional
Number of Elements per pcs	2
Maximum Working Voltage (V)	34
Minimum Breakdown Voltage (V)	36
Maximum Clamping Voltage (V)	57
Maximum Peak Pulse Current (A)	7
Maximum Leakage Current (uA)	5
Test Current (mA)	1
Maximum Power Dissipation (mW)	300
Peak Pulse Power Dissipation (W)	350
Capacitance Value (pF)	100(Typ)
Operating Temperature-Min	-65
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	0.98
Package Length	2.9
Package Width	1.3
PCB changed	3
