D5V0F4U6V-7

SKU: 18545

Manufacturer: Diodes Incorporated

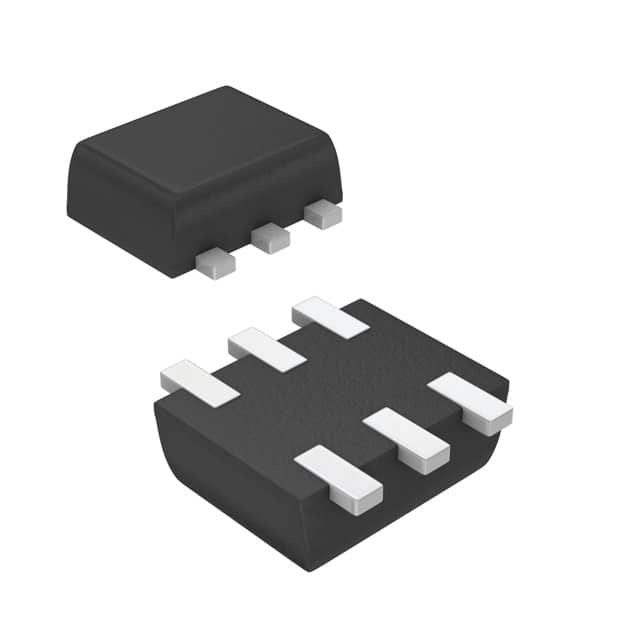

ESD Suppressor Diode TVS Uni-Dir 5.5V 6-Pin SOT-563 T/R

2690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Quad
Direction Type	Uni-Directional
Number of Elements per pcs	4
Maximum Working Voltage (V)	5.5
Maximum Clamping Voltage (V)	12
Maximum Leakage Current (uA)	0.2
Maximum Power Dissipation (mW)	380
Capacitance Value (pF)	0.65
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-563
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.6
Package Length	1.6
Package Width	1.2
