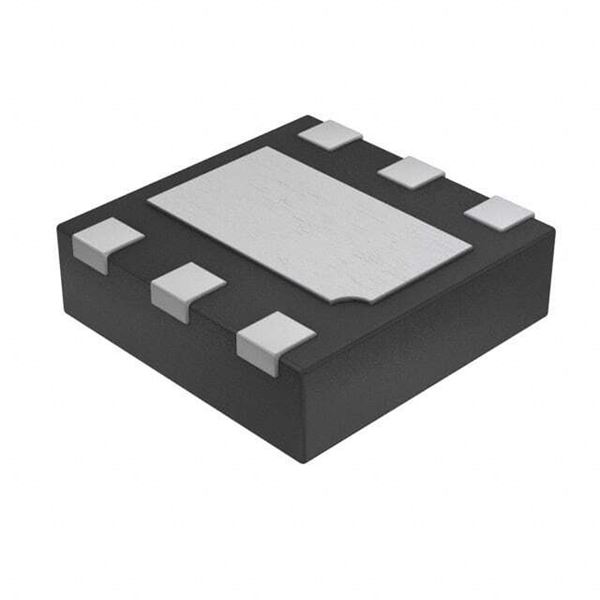

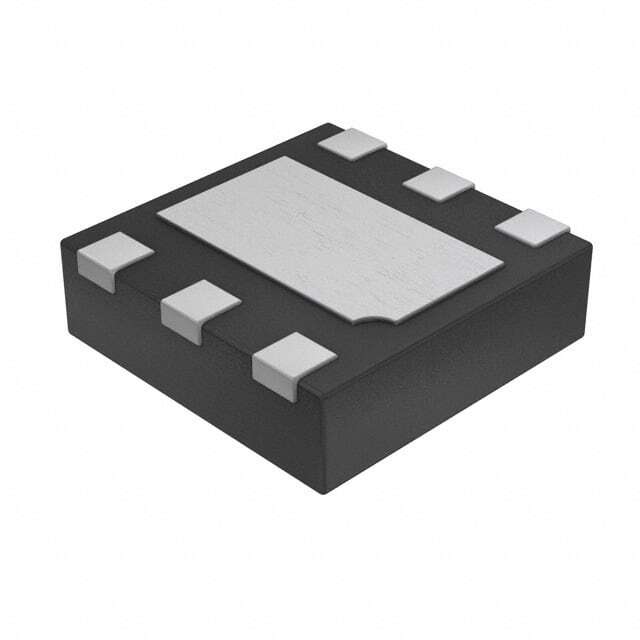

D5V0F3B6LP20-7

SKU: 68037

Manufacturer: Diodes Incorporated

ESD Suppressor Diode TVS Bi-Dir 5.5V 6-Pin UDFN T/R

4070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Triple
Direction Type	Bi-Directional
Number of Elements per pcs	3
Maximum Working Voltage (V)	5.5
Minimum Breakdown Voltage (V)	6
Maximum Breakdown Voltage (V)	9.95
Maximum Clamping Voltage (V)	14
Maximum Peak Pulse Current (A)	3.5
Maximum Leakage Current (uA)	0.05
Test Current (mA)	1
Maximum Power Dissipation (mW)	500
Capacitance Value (pF)	0.5
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	UDFN
Pin Count	6
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.58
Package Length	2
Package Width	2
PCB changed	6
