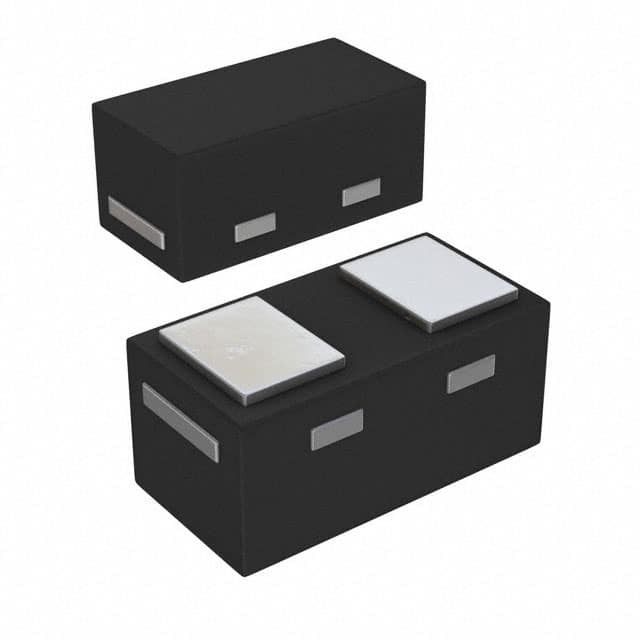

D3V3M1U2LP3-7

SKU: 89117

Manufacturer: Diodes Incorporated

ESD Suppressor Diode TVS Uni-Dir 3.3V 2-Pin X3-DFN T/R

1610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	3.3
Minimum Breakdown Voltage (V)	4.5
Maximum Clamping Voltage (V)	10
Maximum Peak Pulse Current (A)	12
Maximum Leakage Current (uA)	2
Test Current (mA)	1
Maximum Power Dissipation (mW)	250
Peak Pulse Power Dissipation (W)	120
Capacitance Value (pF)	85
Operating Temperature-Min	-65
Operating Temperature-Max	150
Original Package	X3-DFN
Pin Count	2
Terminal Form	Surface Mount
Package Height	0.28
Package Length	0.62
Package Width	0.32
