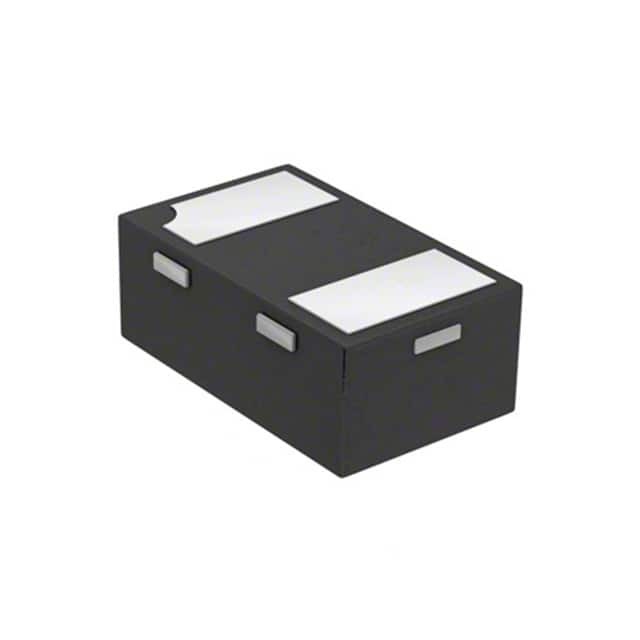

D15V0H1U2LP-7B

SKU: 96195

Manufacturer: Diodes Incorporated

ESD Suppressor Diode TVS Uni-Dir 15V 2-Pin X1-DFN T/R

1160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	15
Minimum Breakdown Voltage (V)	16
Maximum Breakdown Voltage (V)	19
Maximum Clamping Voltage (V)	27
Maximum Peak Pulse Current (A)	12
Maximum Leakage Current (uA)	0.1
Test Current (mA)	1
Maximum Power Dissipation (mW)	250
Peak Pulse Power Dissipation (W)	300
Capacitance Value (pF)	90
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	X1-DFN
Pin Count	2
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.47
Package Length	1
Package Width	0.6
PCB changed	2
