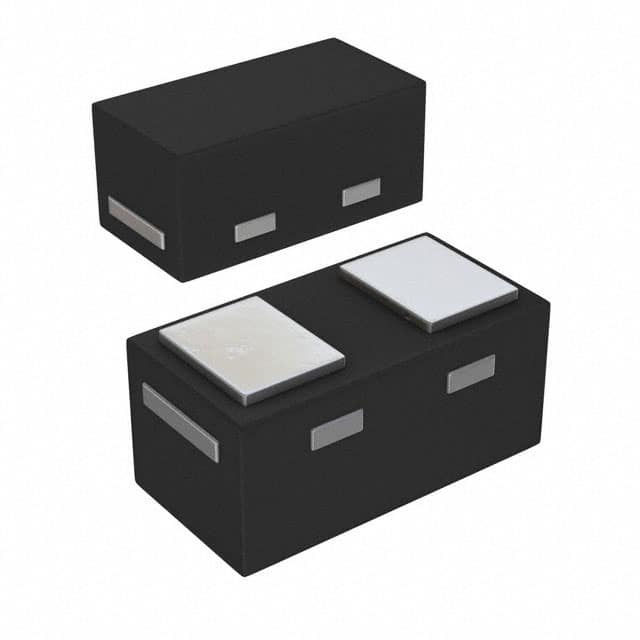

BAS116LP3-7

SKU: 10837

Manufacturer: Diodes Incorporated

Rectifier Diode Small Signal Switching 85V 0.215A 3000ns 2-Pin DFN T/R

35240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Small Signal Switching Diode
Maximum DC Reverse Voltage (V)	85
Configuration	Single
Peak Reverse Repetitive Voltage (V)	85
Maximum Continuous Forward Current (A)	0.215
Peak Non-Repetitive Surge Current (A)	4
Peak Forward Voltage (V)	1.35@0.15A
Peak Reverse Current (uA)	0.01@75V
Maximum Power Dissipation (mW)	250
Peak Reverse Recovery Time (ns)	3000
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	2
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.28
Package Length	0.62
Package Width	0.32
PCB changed	2
