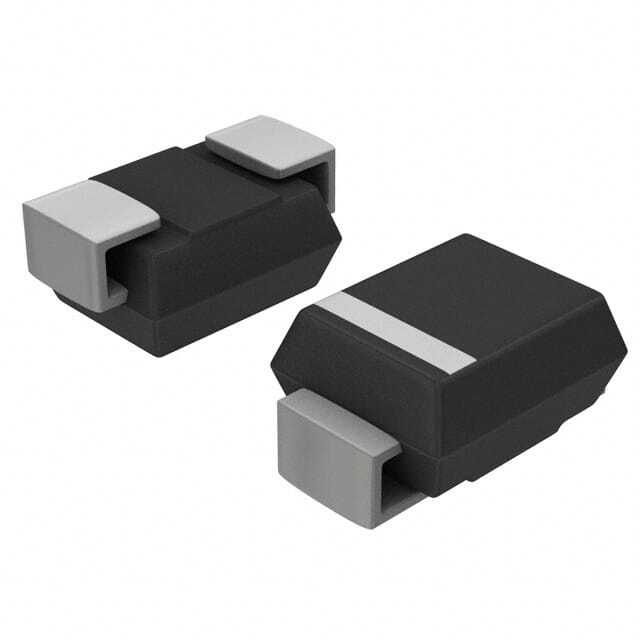

    B320-13-F

    SKU: 131268
    Manufacturer: Diodes Incorporated
    Rectifier Diode Schottky 20V 3A 2-Pin SMC T/R
    Download sample
    Request Free Samples
    43460 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.50.00.80
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Type Schottky Diode
    Maximum DC Reverse Voltage (V) 20
    Configuration Single
    Peak Reverse Repetitive Voltage (V) 20
    Maximum Continuous Forward Current (A) 3
    Peak Non-Repetitive Surge Current (A) 100
    Peak Forward Voltage (V) 0.5
    Peak Reverse Current (uA) 100
    Maximum Junction Ambient Thermal Resistance 90°C/W(Typ)
    Maximum Diode Capacitance (pF) 200
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Supplier Temperature Grade Commercial
    Packing Method Tape and Reel
    Original Package SMC
    Pin Count 2
    Standard Package Method DO-214-AB
    Terminal Form Surface Mount
    Package Height 2.3(Max)
    Package Length 7.11(Max)
    Package Width 6.22(Max)
    PCB changed 2
