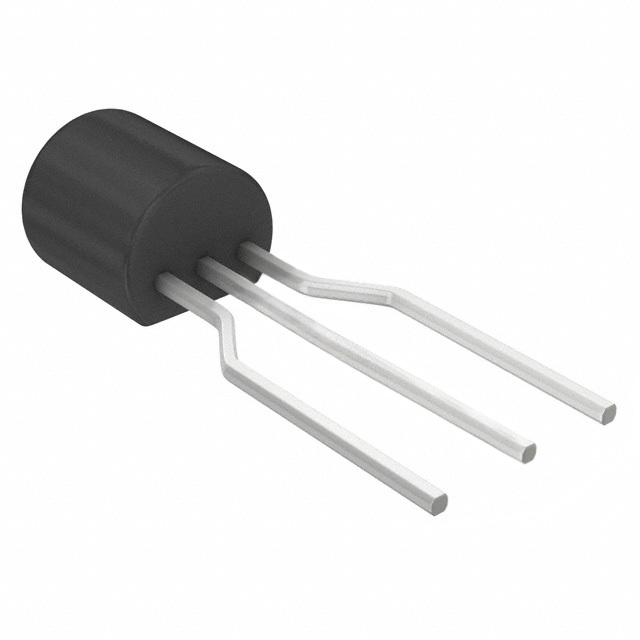

AZ78L05ZTR-E1

SKU: 152506

Manufacturer: Diodes Incorporated

Standard Regulator Pos 5V 0.1A 3-Pin TO-92 Ammo

2970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±5
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.1
Maximum Input Voltage (V)	15
Line Regulation	75mV
Load Regulation	60mV
Maximum Quiescent Current (mA)	5
Maximum Power Dissipation (mW)	650
Junction to Case	81°C/W(Typ)
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Ammo
Original Package	TO-92
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	4.7(Max)
Package Length	4.8(Max)
Package Width	3.7(Max)
PCB changed	3
