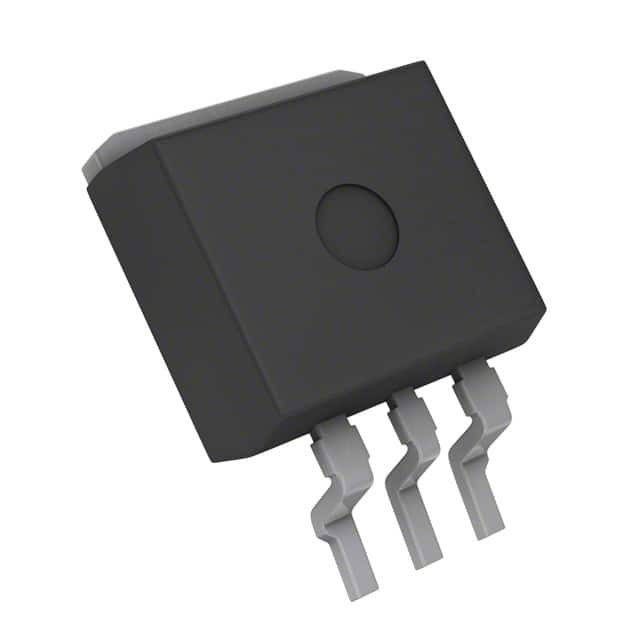

AZ2940S-5.0TRG1

SKU: 100762

Manufacturer: Diodes Incorporated

LDO Regulator Pos 5V 1A 4-Pin(3+Tab) TO-263 T/R

2240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	1
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	13.2
Maximum Dropout Voltage @ Current (V)	0.2@100mA
Line Regulation	50mV
Load Regulation	75mV
Junction to Ambient	60°C/W
Junction to Case	4.4°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TO-263
Pin Count	4
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.82(Max)
Package Length	10.29(Max)
Package Width	9.65(Max)
PCB changed	3
Tab	Tab
