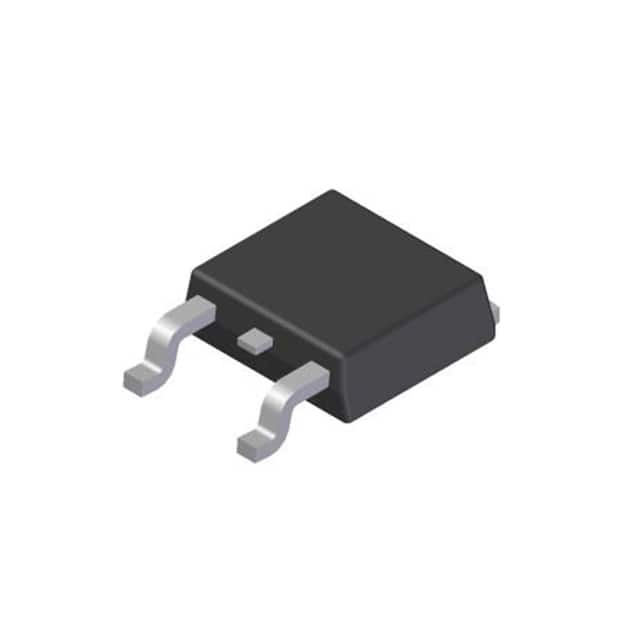

AZ2185D-ADJTRG1

SKU: 37227

Manufacturer: Diodes Incorporated

LDO Regulator 3A 3-Pin(2+Tab) TO-252 T/R

2100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Output Type	Adjustable
Maximum Output Current (A)	3
Maximum Input Voltage (V)	12
Maximum Dropout Voltage @ Current (V)	1.5@3A
Reference Voltage (V)	1.25(Typ)
Line Regulation	0.015%/V(Typ)
Load Regulation	0.1%/A(Typ)
Junction to Ambient	75°C/W
Special Features	Thermal Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TO-252
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.29
Package Length	6.58
Package Width	6.1
PCB changed	2
Tab	Tab
