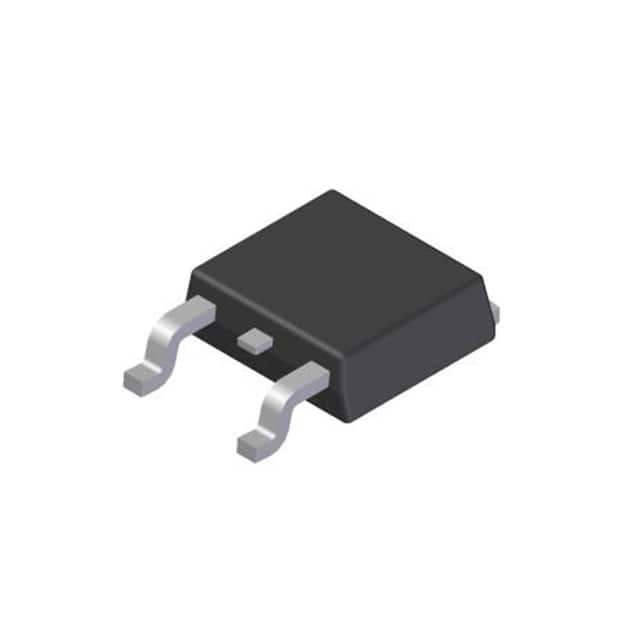

AZ1117D-ADJTRE1

SKU: 39283

Manufacturer: Diodes Incorporated

LDO Regulator Pos 1.25V to 12V 1A 3-Pin(2+Tab) TO-252 T/R

13410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Adjustable
Output Voltage (V)	1.25 to 12
Maximum Output Current (A)	1
Maximum Input Voltage (V)	15
Maximum Dropout Voltage @ Current (V)	1.1@0.1A
Reference Voltage (V)	1.27
Line Regulation	0.2%
Load Regulation	0.4%
Maximum Quiescent Current (mA)	10
Junction to Ambient	100°C/W
Junction to Case	17°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TO-252
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
PCB changed	2
Tab	Tab
