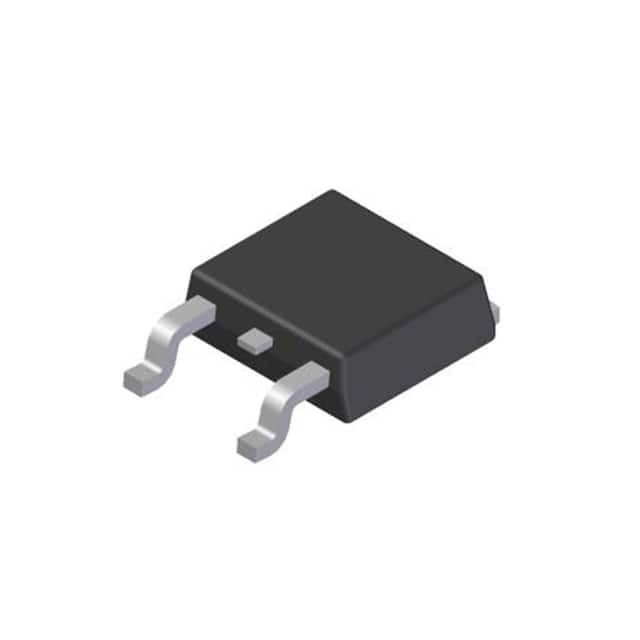

AZ1117CD-3.3TRG1

SKU: 32144

Manufacturer: Diodes Incorporated

LDO Regulator Pos 3.3V 0.8A 3-Pin(2+Tab) TO-252 T/R

2240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.8
Maximum Input Voltage (V)	15
Maximum Dropout Voltage @ Current (V)	1.4@8A
Line Regulation	6mV
Load Regulation	15mV
Maximum Quiescent Current (mA)	6
Junction to Ambient	100°C/W
Junction to Case	10°C/W(Typ)
Special Features	Thermal Protection
Operating Temperature-Min	-20
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TO-252
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.29
Package Length	6.58
Package Width	6.1
PCB changed	2
Tab	Tab
