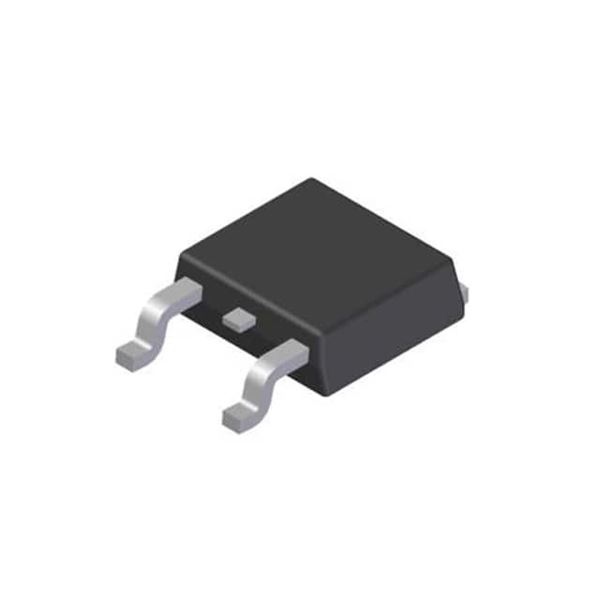

AZ1084D-1.8TRE1

SKU: 74572

Manufacturer: Diodes Incorporated

LDO Regulator Pos 1.8V 5A 3-Pin(2+Tab) TO-252 T/R

34200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	1.8
Maximum Output Current (A)	5
Maximum Input Voltage (V)	12
Maximum Dropout Voltage @ Current (V)	1.5@5A
Line Regulation	6mV
Load Regulation	15mV
Maximum Quiescent Current (mA)	10
Junction to Ambient	100°C/W
Junction to Case	7.36°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TO-252
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.38(Max)
Package Length	6.7(Max)
Package Width	6.2(Max)
PCB changed	2
Tab	Tab
