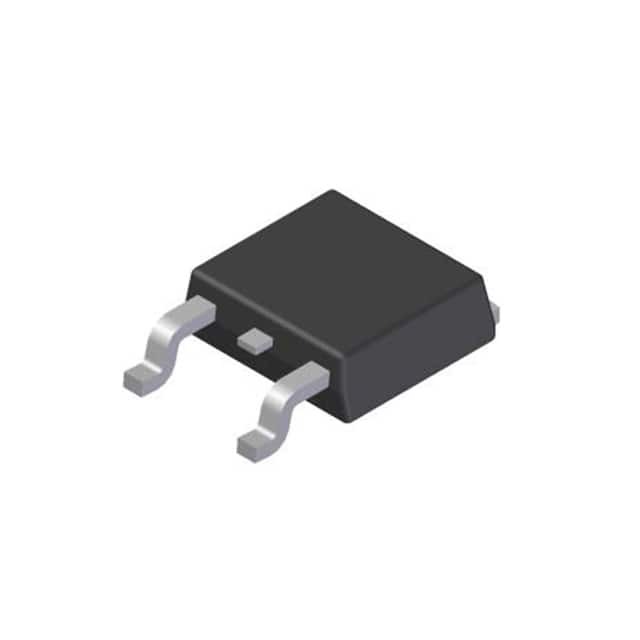

AS7805ADTR-E1

SKU: 53448

Manufacturer: Diodes Incorporated

Standard Regulator Pos 5V 1A 3-Pin(2+Tab) TO-252 T/R

50260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±4
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	1
Maximum Input Voltage (V)	25
Line Regulation	50mV
Load Regulation	50mV
Maximum Quiescent Current (mA)	6
Junction to Ambient	100°C/W
Junction to Case	16°C/W(Typ)
Special Features	Short Circuit Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TO-252
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.38(Max)
Package Length	6.7(Max)
Package Width	6.2(Max)
PCB changed	2
Tab	Tab
