AP7381-50Y-13

SKU: 152328

Manufacturer: Diodes Incorporated

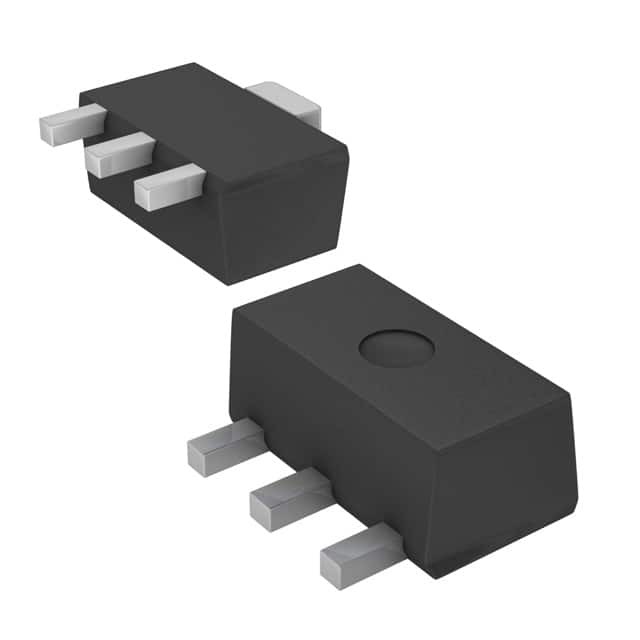

LDO Regulator Pos 5V 0.15A 4-Pin(3+Tab) SOT-89 T/R

25900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.15
Minimum Input Voltage (V)	3.3
Maximum Input Voltage (V)	40
Line Regulation	0.05%/V(Typ)
Load Regulation	0.5%(Typ)
Typical Ground Current @ Full Load (mA)	0.025
Junction to Ambient	165°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOT-89
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.5
Package Length	4.5
Package Width	2.5
PCB changed	3
