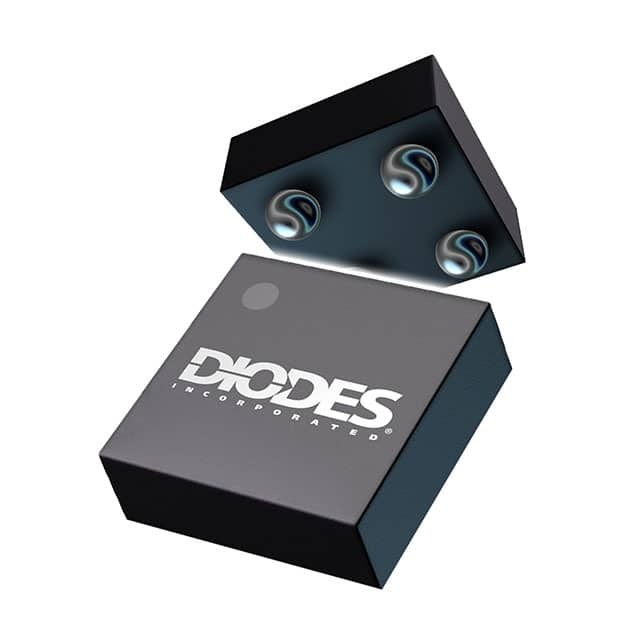

AP7350D-18CF4-7

SKU: 15938

Manufacturer: Diodes Incorporated

LDO Regulator Pos 1.8V 0.15A 4-Pin X2-WLP T/R

3140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	1.8
Maximum Output Current (A)	0.15
Minimum Input Voltage (V)	2
Maximum Input Voltage (V)	5.25
Maximum Dropout Voltage @ Current (V)	0.6@150mA
Line Regulation	0.1%/V
Load Regulation	25mV
Maximum Quiescent Current (mA)	0.0007
Maximum Power Dissipation (mW)	315
Junction to Ambient	267°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	X2-WLP
Pin Count	4
Terminal Form	Surface Mount
Package Height	0.25
Package Length	0.64
Package Width	0.64
