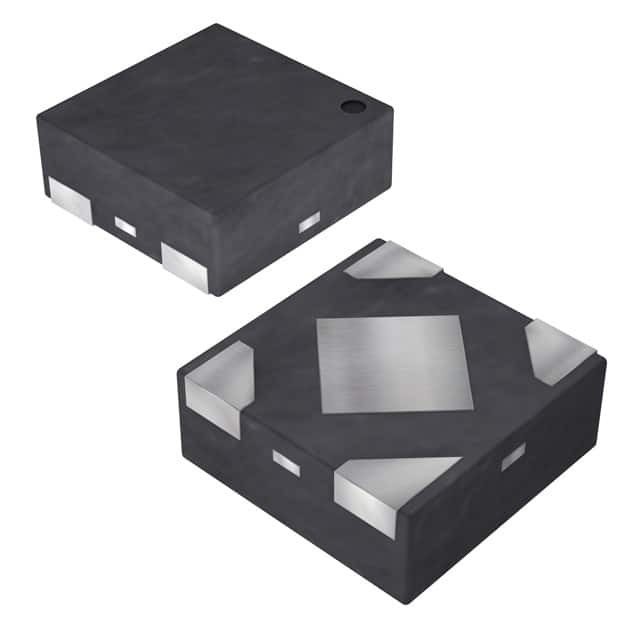

AP7343D-105FS4-7B

SKU: 100712

Manufacturer: Diodes Incorporated

LDO Regulator Pos 1.05V 0.3A 4-Pin X2-DFN EP T/R

2840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	1.05
Maximum Output Current (A)	0.3
Minimum Input Voltage (V)	1.7
Maximum Input Voltage (V)	5.25
Maximum Dropout Voltage @ Current (V)	0.7@300mA
Line Regulation	0.1%/V
Load Regulation	30mV
Maximum Quiescent Current (mA)	0.06
Maximum Power Dissipation (mW)	400
Junction to Ambient	237°C/W(Typ)
Junction to Case	96°C/W(Typ)
Special Features	Short Circuit Protection
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	X2-DFN EP
Pin Count	4
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.37
Package Length	1
Package Width	1
PCB changed	4
