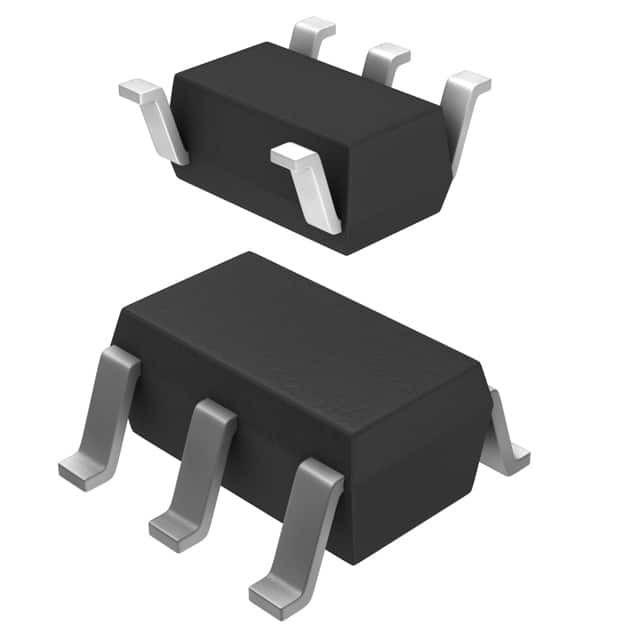

AP7343-12W5-7

SKU: 95545

Manufacturer: Diodes Incorporated

LDO Regulator Pos 1.2V 0.3A 5-Pin SOT-25 T/R

4310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Fixed
Output Voltage (V)	1.2
Maximum Output Current (A)	0.3
Minimum Input Voltage (V)	1.7
Maximum Input Voltage (V)	5.25
Maximum Dropout Voltage @ Current (V)	0.72@300mA
Line Regulation	0.1%/V(Typ)
Load Regulation	30mV
Maximum Quiescent Current (mA)	0.06
Maximum Power Dissipation (mW)	400
Junction to Ambient	179°C/W(Typ)
Junction to Case	52°C/W(Typ)
Special Features	Short Circuit Protection
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-25
Pin Count	5
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3
Package Width	1.6
PCB changed	5
