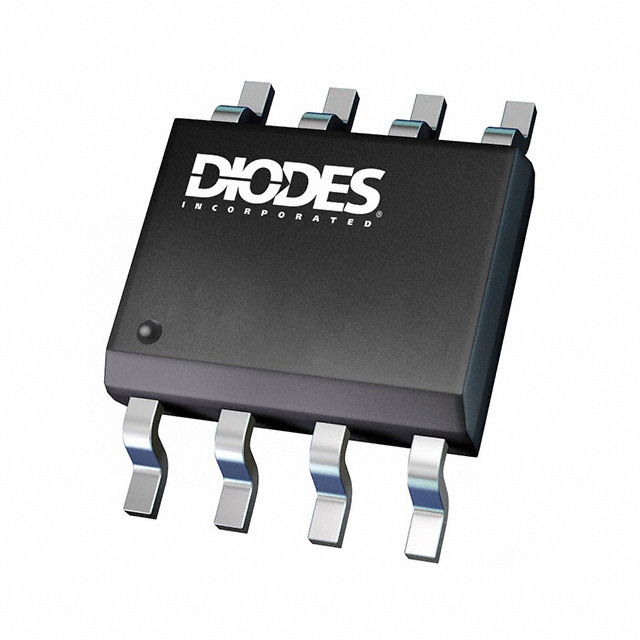

AP7176BSP-13

SKU: 136201

Manufacturer: Diodes Incorporated

LDO Regulator Pos 0.8V 3A 8-Pin SOP EP T/R

1400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1.5
Output Type	Adjustable
Output Voltage (V)	0.8(Min)
Maximum Output Current (A)	3
Minimum Input Voltage (V)	1.2
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.35@3A
Reference Voltage (V)	0.8(Typ)
Line Regulation	0.15%/V
Load Regulation	0.06%(Typ)
Maximum Power Dissipation (mW)	1700
Junction to Ambient	70°C/W
Junction to Case	30°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOP EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.37(Max)
Package Length	4.9
Package Width	3.9
PCB changed	8
