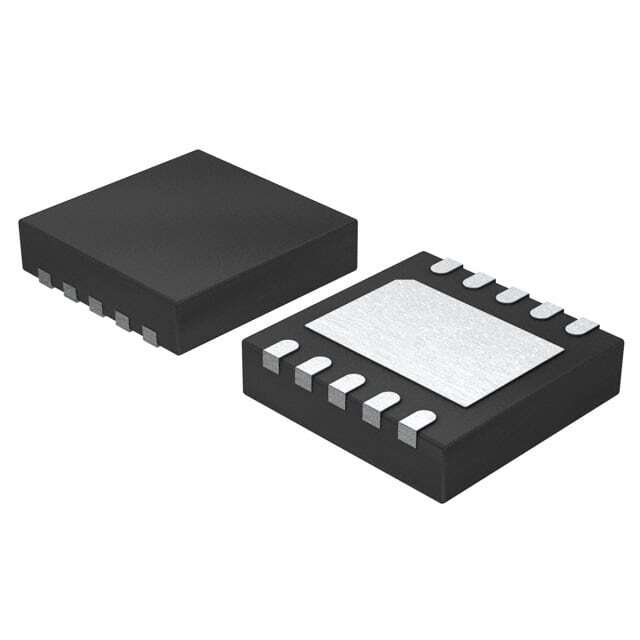

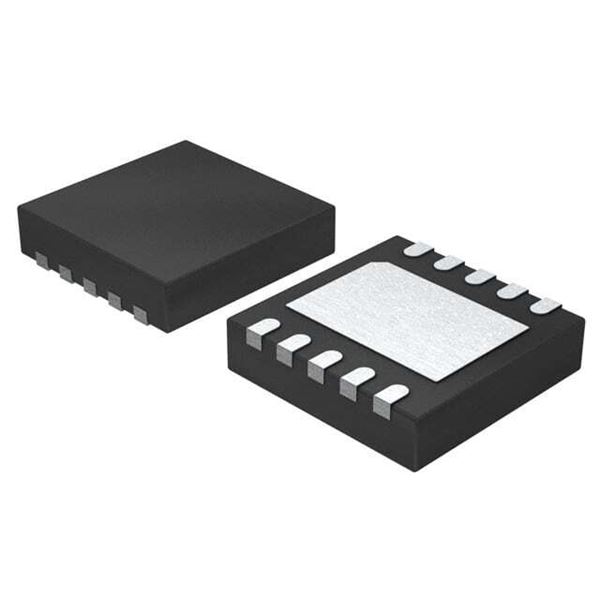

AP7173-FNG-7

SKU: 123938

Manufacturer: Diodes Incorporated

LDO Regulator Pos 0.8V to 3.3V 1.5A 10-Pin DFN EP T/R

63710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±0.5
Output Type	Adjustable
Output Voltage (V)	0.8 to 3.3
Maximum Output Current (A)	1.5
Minimum Input Voltage (V)	1
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.27@1.5A
Reference Voltage (V)	0.808
Line Regulation	0.03%/V(Typ)
Load Regulation	0.09%/A(Typ)
Maximum Power Dissipation (mW)	3690
Junction to Ambient	35°C/W(Typ)
Junction to Case	4.9°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	10
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	10
