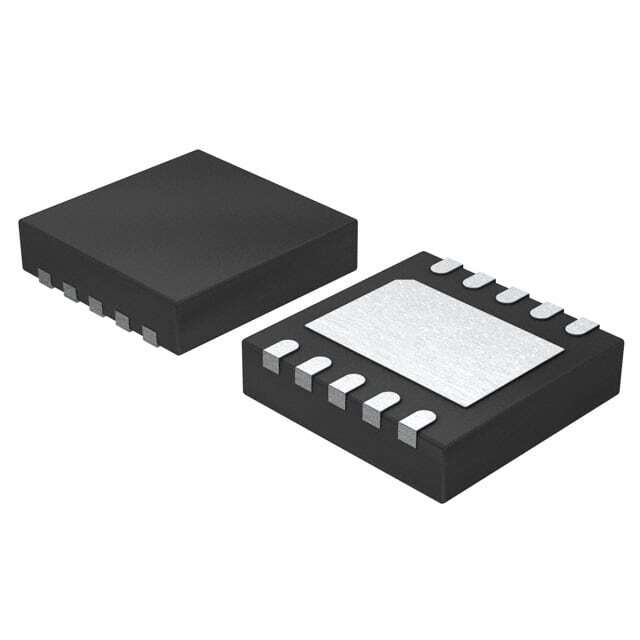

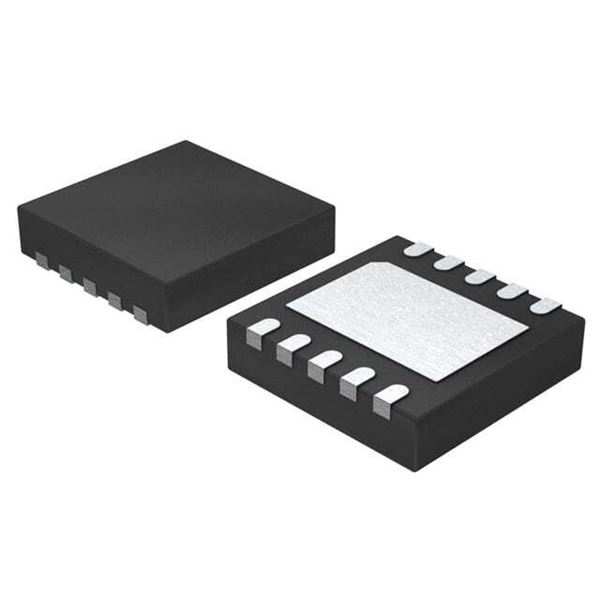

AP7165-FNG-7

SKU: 39101

Manufacturer: Diodes Incorporated

LDO Regulator Pos 0.8V to 5V 0.6A 10-Pin DFN T/R

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2.5
Output Type	Adjustable
Output Voltage (V)	0.8 to 5
Maximum Output Current (A)	0.6
Minimum Input Voltage (V)	2.2
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.4@500mA
Reference Voltage (V)	0.8(Typ)
Line Regulation	0.015%/V(Typ)
Load Regulation	1%
Maximum Quiescent Current (mA)	0.17
Maximum Power Dissipation (mW)	3100
Junction to Ambient	40°C/W(Typ)
Junction to Case	9°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	10
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	10
