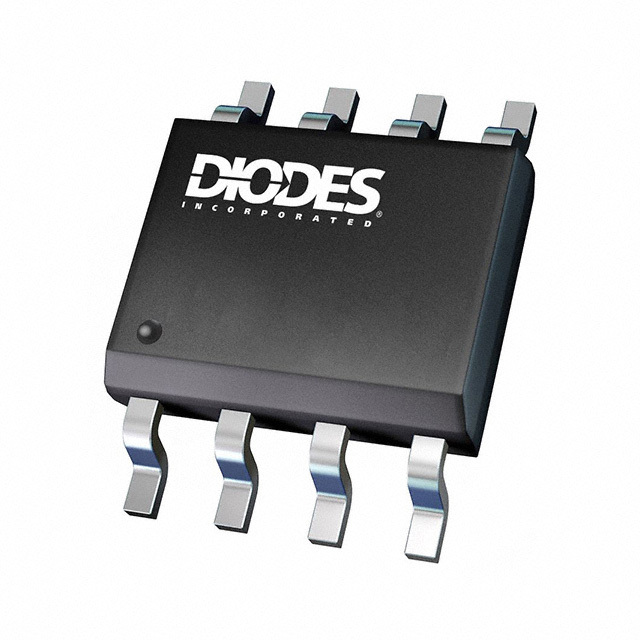

AP6502SP-13

SKU: 109682

Manufacturer: Diodes Incorporated

Conv DC-DC 4.75V to 18V Synchronous Step Down Single-Out 0.925V to 16V 2A 8-Pin SO EP T/R

111160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	380
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.925 to 16
Maximum Output Current (A)	2
Minimum Input Voltage (V)	4.75
Maximum Input Voltage (V)	18
Operating Supply Voltage (V)	4.75 to 18
Typical Quiescent Current (uA)	600
Efficiency (%)	95
Maximum ESD Protection Voltage (kV)	3@HBM/0.25@MM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SO EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	4.95(Max)
Package Width	3.95(Max)
PCB changed	8
