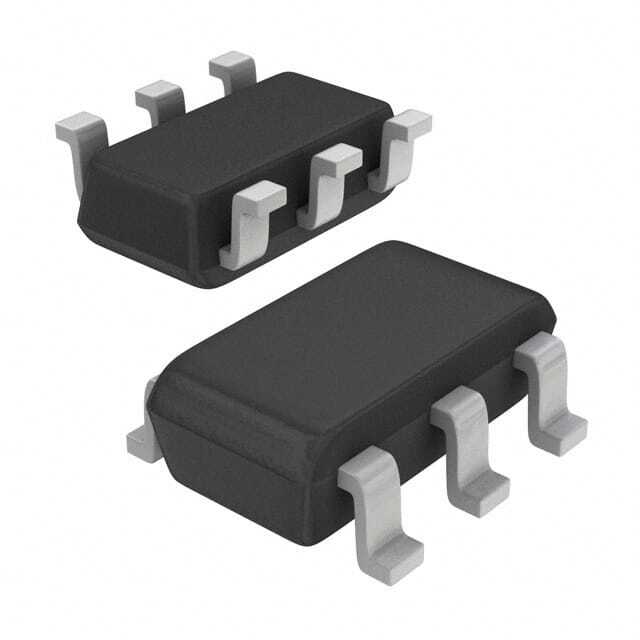

AP3602AKTR-E1

SKU: 123930

Manufacturer: Diodes Incorporated

Conv DC-DC 2.7V to 5V Step Up Single-Out 4.8V to 5.2V 0.1A 6-Pin SOT-26 T/R

3120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Up
Output Type	Adjustable
Switching Frequency (kHz)	1200(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	4.8 to 5.2
Maximum Output Current (A)	0.1
Minimum Input Voltage (V)	2.7
Maximum Input Voltage (V)	5
Operating Supply Voltage (V)	2.7 to 5
Typical Quiescent Current (uA)	13
Efficiency (%)	92(Typ)
Maximum ESD Protection Voltage (kV)	2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-26
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3
Package Width	1.6
PCB changed	6
