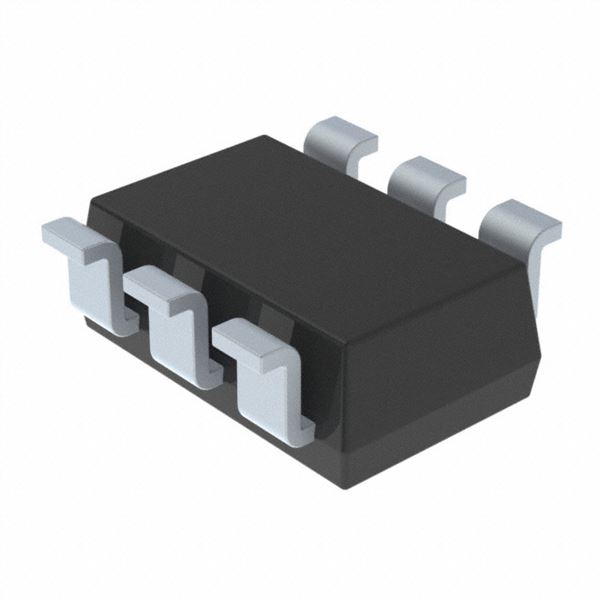

AP3125CMKTR-G1

SKU: 131048

Manufacturer: Diodes Incorporated

Current Mode PWM Controller 350mA 70kHz 6-Pin SOT-26 T/R

1220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current
Topology	Flyback
Number of PWM Outputs	1
Switching Frequency (kHz)	70
Maximum Duty Cycle (%)	80
Rise Time (ns)	150
Output Current (mA)	350(Max)
Fall Time (ns)	50
Operating Supply Voltage (V)	10 to 25
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	25
Maximum Supply Current (mA)	2
Maximum Power Dissipation (mW)	500
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-26
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3
Package Width	1.6
PCB changed	6
