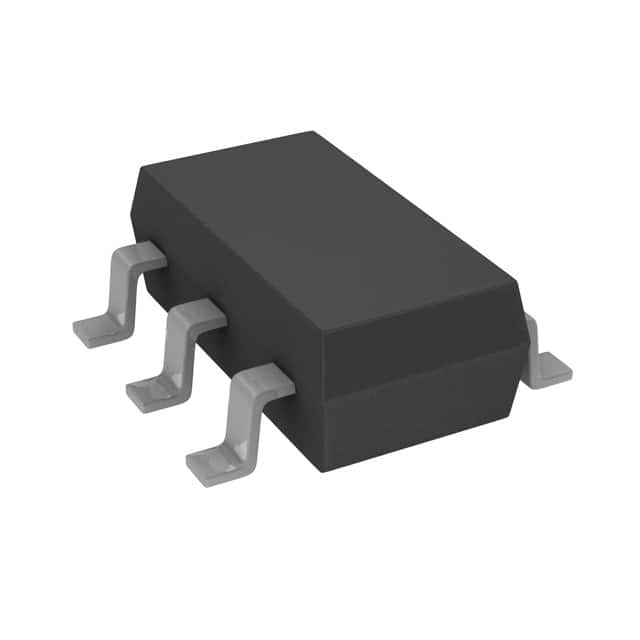

AP22615AWU-7 Diodes Incorporated

AP22615AWU-7

SKU: 157505

Manufacturer: Diodes Incorporated

Hi Side Single 5.5V 0.4A to 4A 6-Pin TSOT-26 T/R

Download sample

Request Free Samples

2230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	High Side Switch
Number of Switches	1
Current Limit (A)	0.4 to 4
Enable Logic	Active High
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	5.5
Number of Outputs	1
Switch On Resistance (mOhm)	40
Operating Temperature-Min	-40
Operating Temperature-Max	85
Typical Rise Time (us)	1900
Typical Fall Time (us)	200
Packing Method	Tape and Reel
Original Package	TSOT-26
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.6
