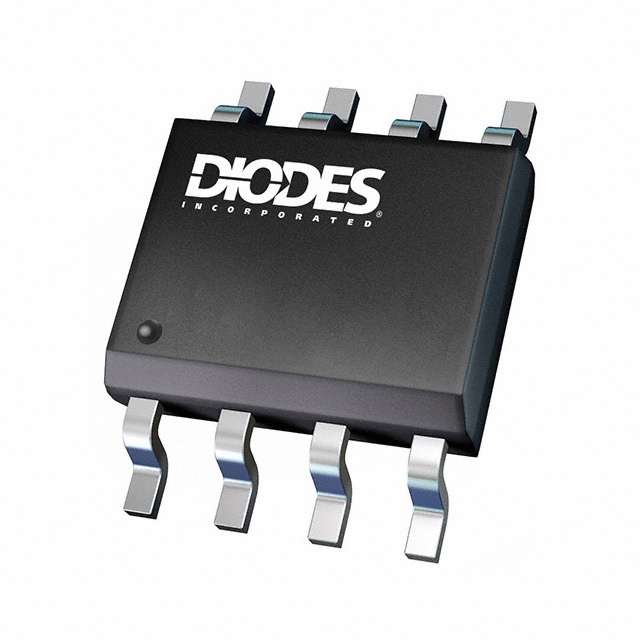

AP2204MP-ADJTRG1

SKU: 102619

Manufacturer: Diodes Incorporated

LDO Regulator Pos 1.24V to 22V 0.2A 8-Pin PSOP EP T/R

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.24 to 22
Maximum Output Current (A)	0.2(Typ)
Minimum Input Voltage (V)	2.6
Maximum Input Voltage (V)	24
Maximum Dropout Voltage @ Current (V)	0.15@100uA
Reference Voltage (V)	1.265
Line Regulation	0.05%(Typ)
Load Regulation	0.5%(Typ)
Typical Ground Current @ Full Load (mA)	2.5
Junction to Ambient	51°C/W
Junction to Case	22°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	PSOP EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	5.1(Max)
Package Width	4(Max)
PCB changed	8
