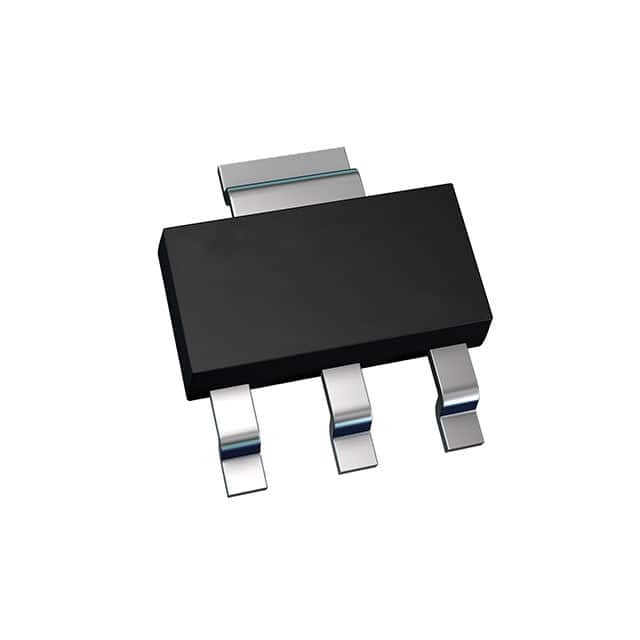

AP2111H-3.3TRG1

SKU: 39063

Manufacturer: Diodes Incorporated

LDO Regulator Pos 3.3V 0.6A 4-Pin(3+Tab) SOT-223 T/R

1040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1.5
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.6(Min)
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	6
Maximum Dropout Voltage @ Current (V)	0.008@10mA
Line Regulation	0.02%/V(Typ)
Load Regulation	0.2%/A(Typ)
Maximum Quiescent Current (mA)	0.08
Junction to Ambient	128°C/W
Special Features	Short Circuit Protection
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT-223
Terminal Form	Surface Mount
Package Height	1.7(Max)
Package Length	6.7(Max)
Package Width	3.7(Max)
PCB changed	3
Tab	Tab
