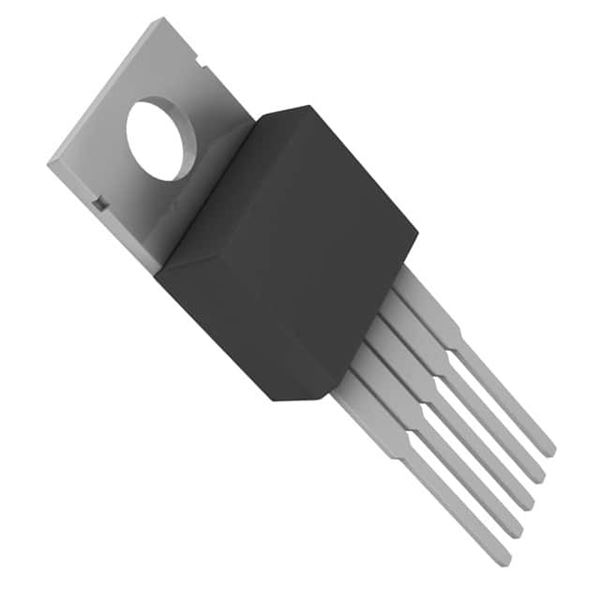

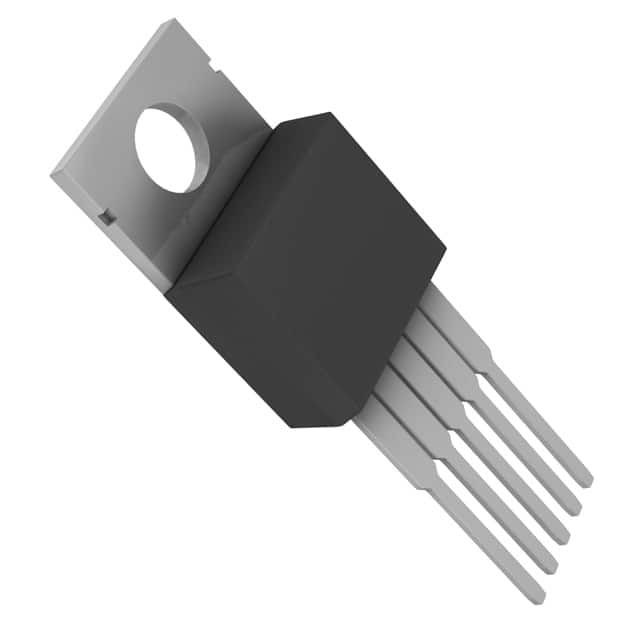

AP1501-50T5RG-U

SKU: 81362

Manufacturer: Diodes Incorporated

Conv DC-DC 4.5V to 40V Step Down Single-Out 5V 3A 5-Pin(5+Tab) TO-220 Tube

3110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Step Down
Output Type	Fixed
Switching Frequency (kHz)	173
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	5
Maximum Output Current (A)	3
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	4.5 to 40
Typical Quiescent Current (uA)	5000
Efficiency (%)	80(Typ)
Operating Temperature-Min	-20
Operating Temperature-Max	85
Packing Method	Tube
Original Package	TO-220
Pin Count	5
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	8.9(Max)
Package Length	10.41(Max)
Package Width	4.7(Max)
PCB changed	5
