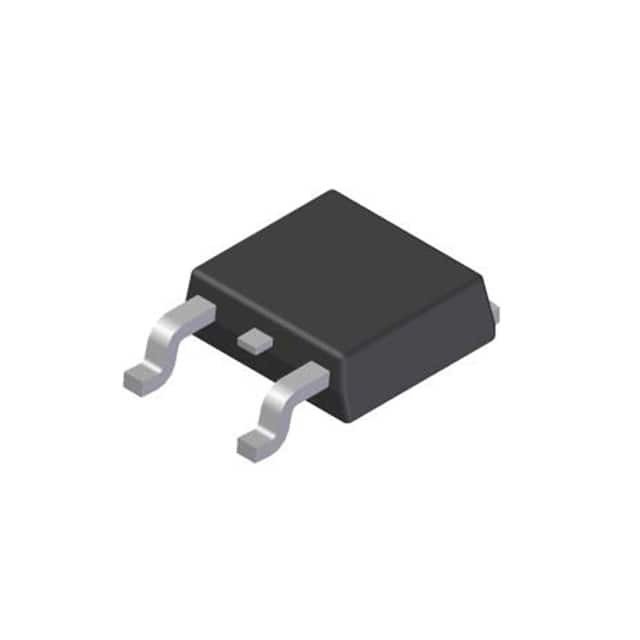

AP1117D33G-13

SKU: 24820

Manufacturer: Diodes Incorporated

LDO Regulator Pos 3.3V 1A 3-Pin(2+Tab) TO-252 T/R

6780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	1
Minimum Input Voltage (V)	6.4
Maximum Input Voltage (V)	18
Maximum Dropout Voltage @ Current (V)	1.4@1A
Line Regulation	0.2%
Load Regulation	33mV
Maximum Quiescent Current (mA)	10
Maximum Power Dissipation (mW)	15000
Junction to Ambient	73°C/W(Typ)
Junction to Case	12°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Original Package	TO-252
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.29
Package Length	6.58
Package Width	6.1
PCB changed	2
Tab	Tab
