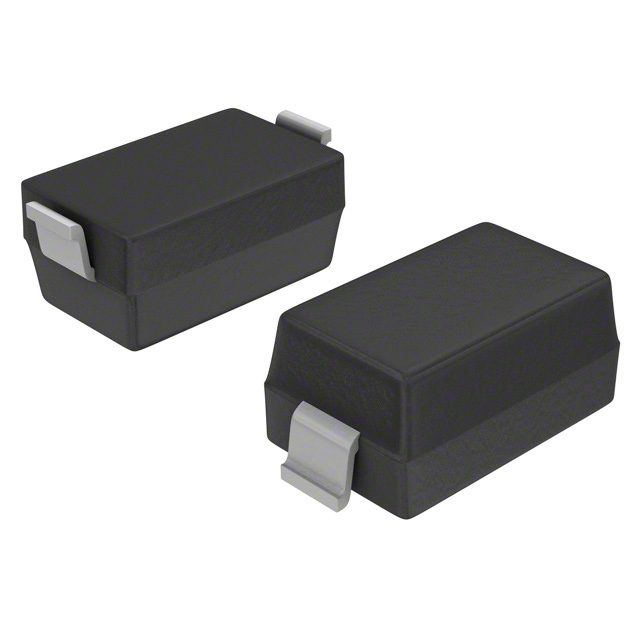

AL5809-20S1-7

SKU: 95482

Manufacturer: Diodes Incorporated

LED Driver 150000uA Supply Current 2-Pin SOD-123 T/R

2510 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Digits	2
Operating Supply Voltage-Min (V)	2.5
Operating Supply Voltage-Max (V)	60
Typical Operating Supply Voltage (V)	3.3
Output Voltage (V)	60(Max)
Maximum Supply Current (uA)	150000
Maximum Output Current (mA)	20
Maximum Power Dissipation (mW)	1240
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	SOD
Original Package	SOD-123
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.05
Package Length	2.65
Package Width	1.55
PCB changed	2
