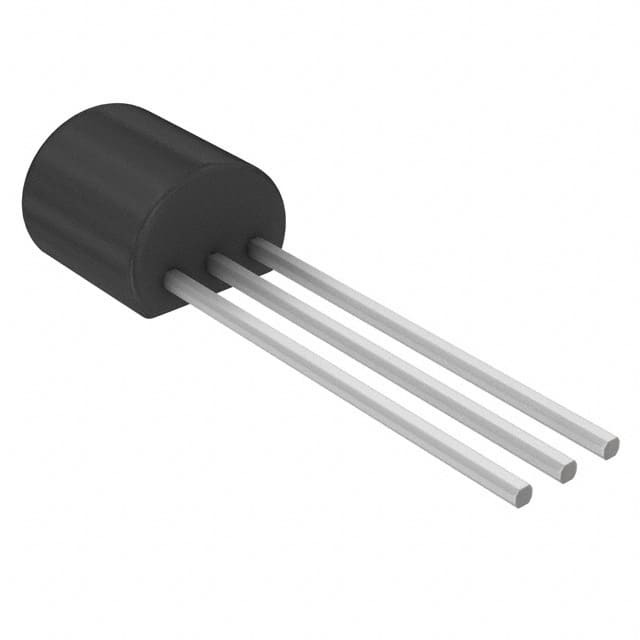

AH9247Z3TR-G1

SKU: 145097

Manufacturer: Diodes Incorporated

Hall Effect Sensor 1mA Omnipolar 3V 3-Pin TO-92S T/R

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Magnetic Type	Omnipolar
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	-45
Typical Magnetic Sensor Hysteresis (Gs)	10
Maximum Magnetic Sensor Operating Point (Gs)	55
Maximum Output Current (mA)	1
Operating Supply Voltage-Min (V)	2.5
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (uA)	6000
Maximum Power Dissipation (mW)	400
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	TO-92S
Pin Count	3
Standard Package Method	TO-92
Terminal Form	Through Hole
Package Height	3.1(Max)
Package Length	4.1(Max)
Package Width	1.62(Max)
PCB changed	3
