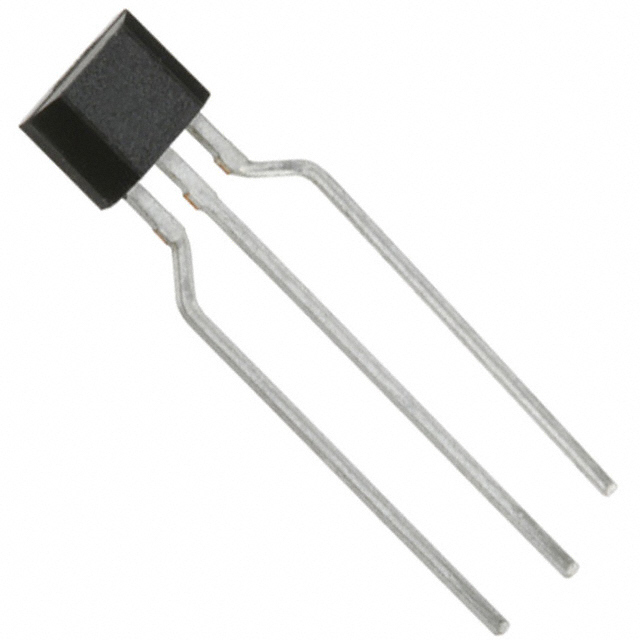

AH3777-P-A

SKU: 88378

Manufacturer: Diodes Incorporated

Hall Effect Sensor 60mA Bipolar Latch 3.3V/5V/9V/12V/15V/18V/24V 3-Pin SIP Ammo

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Magnetic Type	Bipolar Latch
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	-170
Typical Magnetic Sensor Hysteresis (Gs)	280
Maximum Magnetic Sensor Operating Point (Gs)	170
Typical Output Fall Time (us)	0.1
Maximum Output Current (mA)	60
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	18
Operating Supply Voltage-Max (V)	28
Maximum Supply Current (uA)	4000
Maximum Power Dissipation (mW)	550
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Ammo
Original Package	SIP
Pin Count	3
Standard Package Method	SIP
Terminal Form	Through Hole
Package Height	3.2(Max)
Package Length	4.3(Max)
Package Width	2.44(Max)
PCB changed	3
